Description

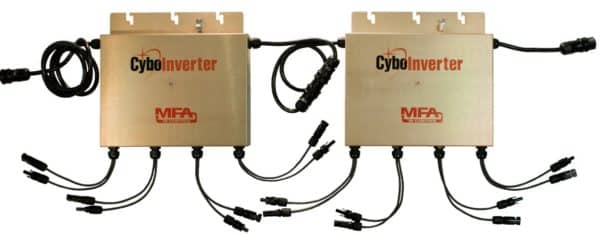

CyboEnergy H Model Twin Pack CyboInverter

The CyboInverter H Model Twin Pack offers battery-less off-grid solar systems that can take major loads off the grid. It’s easy to install and maintain, no batteries, and can still run when the grid is down!

The CyboInverter H Model Twin Pack can connect to 8 solar panels and generates about 10KWh to 16KWh usable solar energy daily for electric water heaters with heating elements ranging from 2KW to 5KW. Each CyboInverter’s input channel has its own control and maximum power point tracking (MPPT) mechanism so that power production is maximized and the partial shading problem is eliminated. In most areas, it can generate about 5KWh to 8KWh usable solar energy daily for electric water heaters with heating elements ranging from 1KW to 3KW.

It can provide sufficient hot water for a 4 to 6 people family. Depending on the installation site and local electricity rates, return-on-investment (ROI) can be achieved in 2 to 4 years.

What’s Included

• CyboEnergy H Model CyboInverter Twin Pack (Master Unit + Slave Unit)
• 3 year Limited Warranty

Technical Features

• Mounting Brackets
• 4ft 2C 12 AWG AC wire
• 8 input channels
• Grounding lug status LED light
• Aluminum enclosure

Downloads

• CyboInverter H Model Twin Pack Spec Sheet
• CyboInverter H Model User Guide
