The Simple Pump Shallow Well Pump

The Simple Pump Shallow Well Pump offers the perfect balance of reliability, efficiency, and versatility. Whether for emergency preparedness, off-grid living, or as a dependable backup, it ensures water access when you need it most. The Shallow Well Pump delivers unmatched reliability and performance for shallow wells up to 25 feet. Designed to provide easy access to water when you need it most, this pump operates without electricity, making it the ideal backup solution for power outages or pump failures. Its lightweight yet strong construction requires less effort to pump compared to other shallow well pumps, while still delivering the pressure needed to power your home’s water system. With its ability to pump into a pressure tank, the Simple Pump Shallow Well Pump ensures full access to your plumbing fixtures and outdoor taps.

This pump is designed for maximum flexibility and ease of installation:

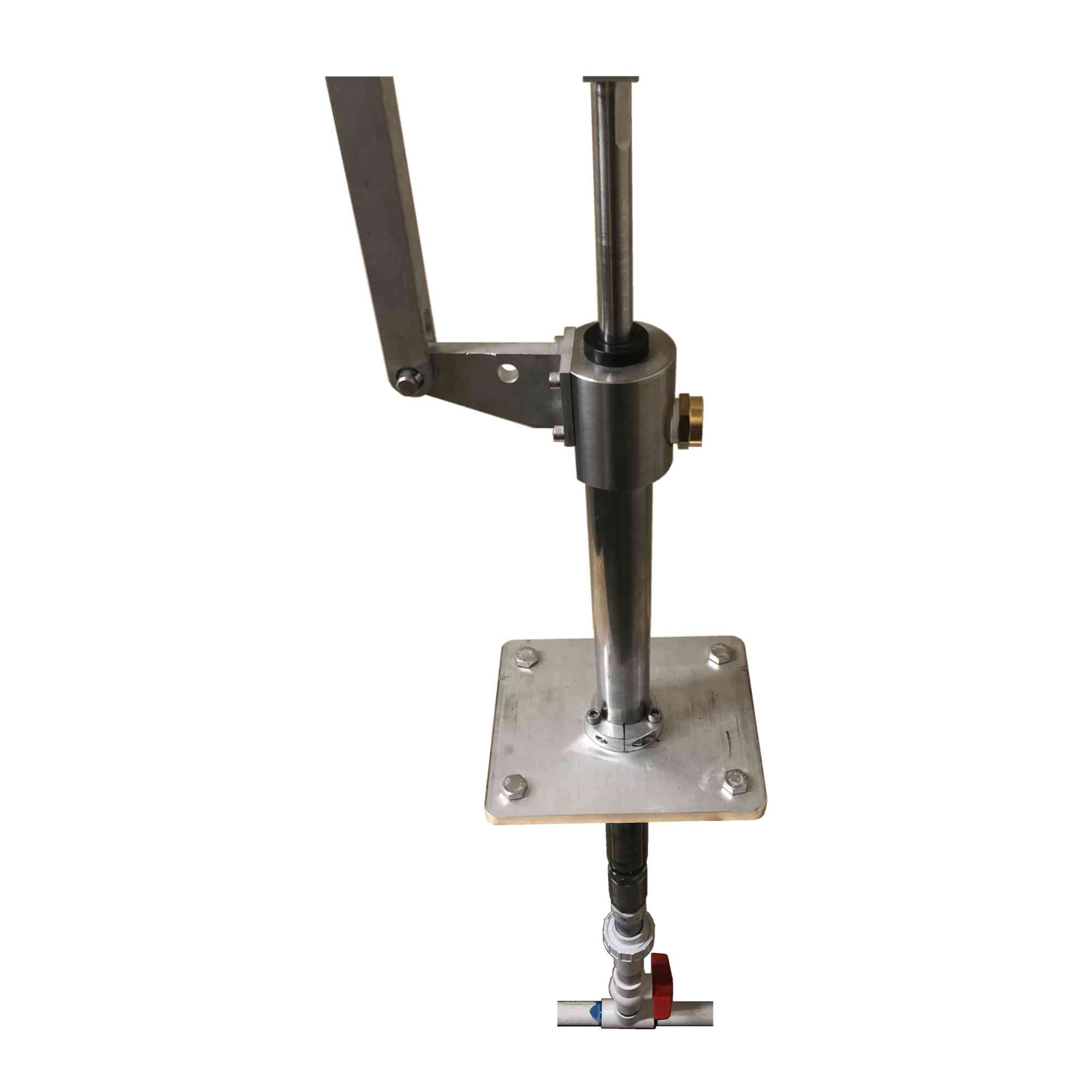

  • Wall Mountable: Install next to your pressure tank for seamless integration with your home’s plumbing system.
  • Well Mountable: Attach to a shallow well head for direct access to water.
  • Water Tank Mountable: Use on water storage tanks to supply water to your home or garden.

The pump’s standard 3/4” hose or FNPT pipe connections make setup straightforward, while its compatibility with motorized upgrades ensures adaptability to your changing needs.

There is a 8 week lead-time on this product

Shallow Well Suction Pump Wall Mount Installation Manual

Shallow Well Suction Pump Wall Mount User Guide

Customization Options

Tailor your Simple Pump to your specific needs with a range of configuration options:
  • Choose from multiple handle sizes to match your preferences and pumping requirements.
  • Upgrade from a hand pump to a motor-operated pump with a quick and easy conversion kit.
  • Select installation options to fit your unique setup, including wall, well, or tank mounting.

Technical Specifications

  • Max Pump Lift: 25 feet (at sea level; decreases by 1 foot per 900 feet elevation)
  • Material: Aerospace-grade stainless steel
  • Connections: Standard 3/4” hose or FNPT pipe
  • Operation: Hand pump, with optional motor upgrade
  • Compliance: Safe Drinking Water Act (SDWA)

Pumping Into Pressure

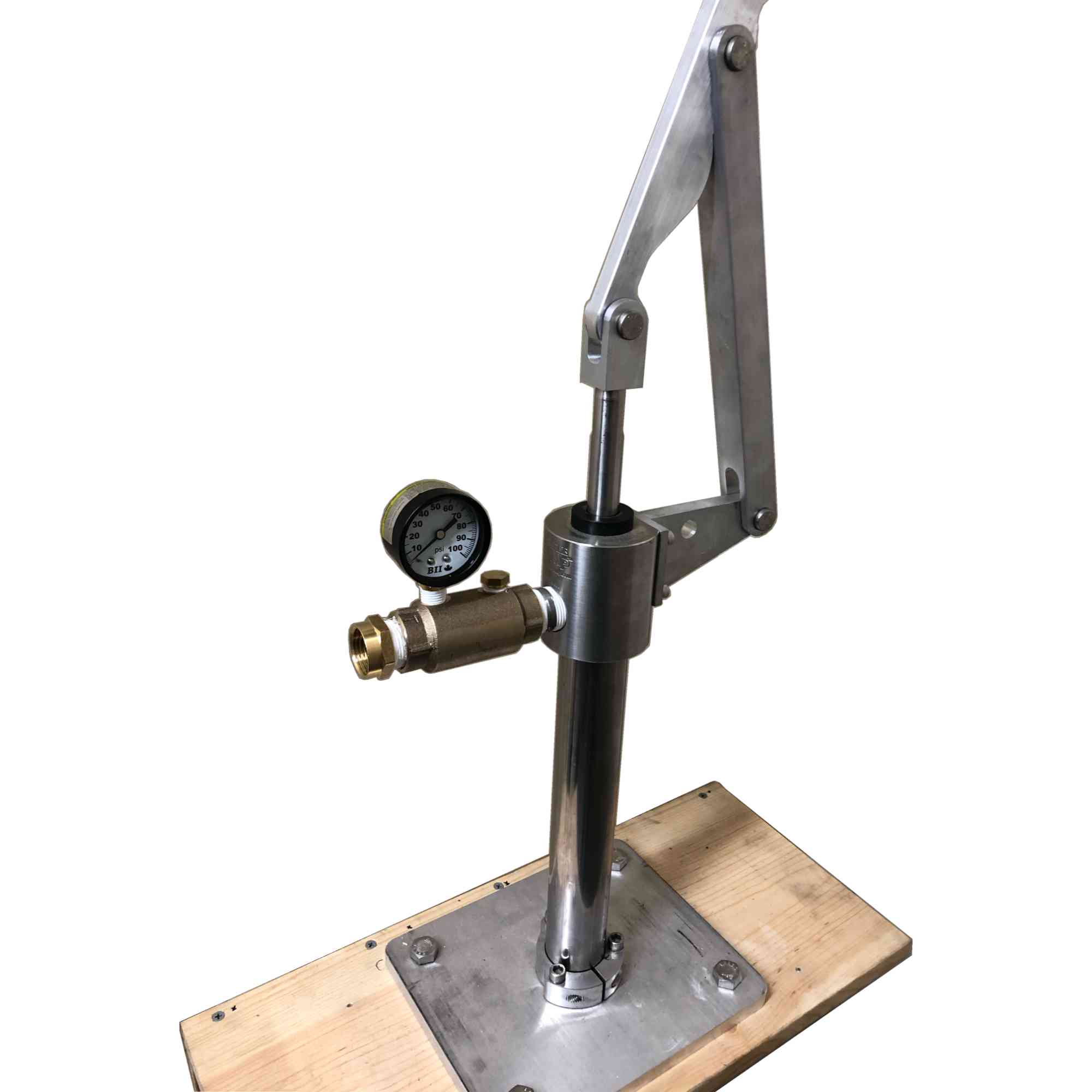

The Simple Pump Shallow Well Pump is one of the few hand-operated suction pumps capable of pumping into a pressure tank. This capability ensures full use of your plumbing fixtures, both indoors and outdoors. With the optional check valve and gauge assembly, pumping into pressure becomes even more efficient. The assembly includes:
  • A one-way check valve with a pressure gauge.
  • Components like a brass plug, nipple, and pressure gauge for easy integration with your system.

Why Choose the Simple Pump Shallow Well Pump?

  • Made in the USA: High-quality manufacturing with locally sourced materials.
  • Emergency Ready: Operates 24/7 without electricity.
  • Safe and Compliant: Meets U.S. federal drinking water standards.
  • Lifetime Warranty: Backed by confidence in durability and workmanship.
  • Adaptable Design: Upgrade to motorized operation when needed.
Crafted from aerospace-grade, lead-free stainless steel, the Simple Pump Shallow Well Pump is built to last. The precision machining process ensures each component fits perfectly, reducing wear and extending the life of the pump. With minimal maintenance requirements and a lifetime warranty against defective materials and workmanship, this pump provides peace of mind for years to come.
