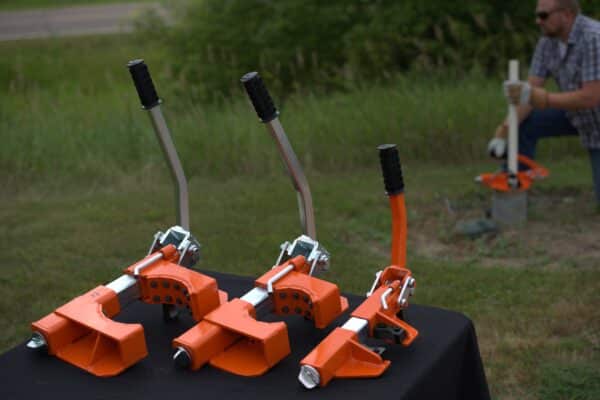

The KWIK KLAMP 2 is the driller’s answer for holding the larger pipe sizes 2 1/2″, 3″, and 4″ (4.5″ OD). KWIK KLAMP 2 is an enlarged version of our popular KWIK KLAMP 1, which is for pipe sizes 1″ through 2″, with many of the same features.  This tool has been used worldwide by environmental drillers, pump installers, well servicemen, and water well drillers.

• Main body is constructed of 2″ and 2 1/2″ 1/4″ wall steel tube.
• Easy to operate, over center locking of jaws when downward pressure is applied to a 19″ long lever handle.
• 1/2″ safety pin used to prevent accidental unclamping.
• Weighs only 30 lbs. and is 20″ long x 7 1/2″ wide.

The Drillers Answer
KWIK KLAMP 2 allows workers to bring pipe or drill joint up to an easy working level. The jaws are equipped with 16 carbide tipped gripper bolts. The KWIK KLAMP is one of the safest time saving tools you will ever own.
An additional jaw set can be purchased to extend the holding capacity of the Kwik Klamp 2
down to 2″ pipe (see below in description).

Designed to hold pipe sizes 2-1/2″, 3″ and 4″ (2.875″OD-4.5″OD) PVC, HDPE, stainless and galvanized. The KK 2 has excellent holding capabilities with loads over 7,000 lbs with capabilities of holding 4″ Pipe on 12″ Casing and 3″ Steel on 8″ Casing
