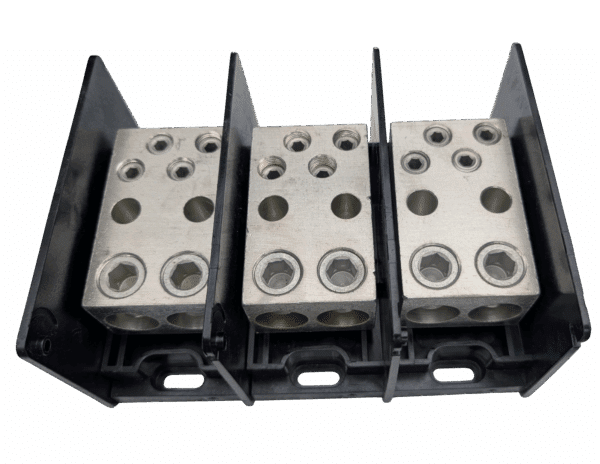

Power Distribution Block 3-Pole
Power Distribution Block, 3-Pole, (2) 4 – 500 Run, (4) 6 – 4/0 Tap
Standard UL 1953
Ideal for landing main inverter outputs, battery feeds, or grid connections in one safe, organized location.
Features & Benefits
Cleaner Installs โ Combine inverter, battery, and grid feeds in one safe block instead of stacking lugs.
High Capacity โ Rated 760A, 600V, 100kA SCCR, built for todayโs large hybrid inverters.
Versatile Wiring โ Accepts copper or aluminum conductors (up to 500 kcmil run / 4/0 tap).
Professional & Scalable โ Compact 3-pole design for expansion and code-compliance.
(with optional cover; sold separately)
$370.00
Description
About the 3P Power Distribution Block
-
Dimensions:
-
Length: 7.89 in
-
Width: 5.70 in
-
Height: 3.55 in
-
-
Material: Aluminum with tin plating
-
Temperature Rating: 194ยฐF (90ยฐC)
-
Certifications: UL Listed, CSA Approved, RoHS Compliant
