PVC Casing Elevators – Standard & Heavy-Duty

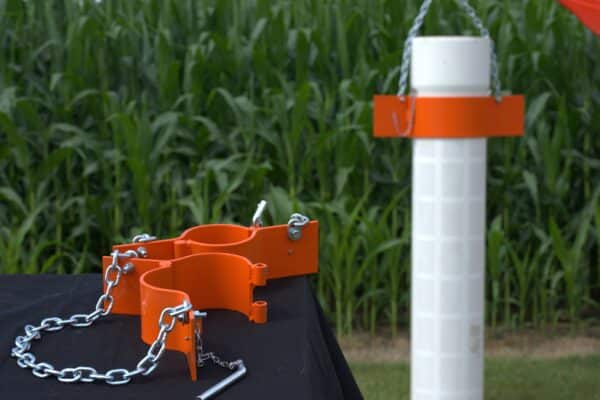

PVC Casing Elevators are a safer, more durable alternative to ropes, cables, or loop chains for accessing and installing PVC well casing. Constructed with high-strength welded steel and equipped with zinc-plated Grade 43 chain, these elevators are built to last and rated for heavy loads.

Standard PVC Casing Elevators- Pipe Sizes: 1″ – 12″ Locks: 1/2″ lock pins and hinges Chain Specs: 1″–6¼” sizes: 1/4″ Grade 43 high-test chain, 2,000 lb capacity    8″–12″ sizes: 5/16″ Grade 43 high-test chain, 3,000 lb capacity

Heavy-Duty PVC Casing Elevators-Pipe Sizes: 4″–8″ (4.5″–8.625″ OD),   10″–18″;  4″–8“: 1/2” wall DOM steel tube, machined to pipe OD with chamfer for bell transitions   10″–18″: Mid-range elevator tested to 5-ton load capacity

Hardware: 3/4″ pins and hinges; machined taper insert lock pin for easy fit (even if pipe is out of round)  Chains: 4″–8″: Includes dual 5/16″ Grade 43 chains (rated 3,000 lbs) 10″–18″: Chains/cables not included

Please Select which PVC Elevator you would like to calculate the cost

$0.00

Load rating based on chain size 1/2 “- 6 1/4″ elevators are equipped with 1/4″ grade 43 high test chain. 2000 lbs. 8″-12″ elevators are equipped with 5/16” grade 43 high test chain. 3000 lbs.

The 4″- 8″ Elevators are equipped with two 5/16″ chains which is load tested to 3000 lbs. The 10″- 18″ Elevators have been tested in house with a load rating of 5 tons. 3/4″ pins and hinges on each side of elevator.

Description

For other water and pumping related products, check out our water delivery page.
