Renon Xtreme LV Battery Module
Renon Xtreme LV Battery Module - Image 2
Renon Xtreme LV Battery Module - Image 3
Renon Xtreme LV Battery Module - Image 4

Renon Xtreme LV Battery Module

About The Renon Xtreme LV Battery:

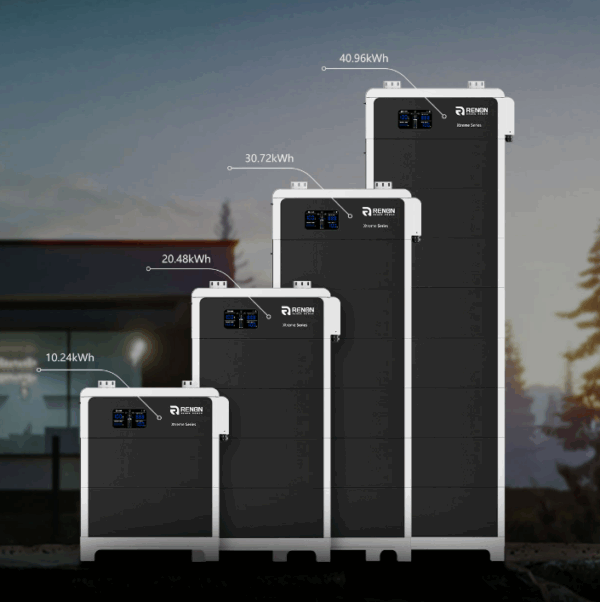

The Xtreme LV combines a compact design with robust performance, suitable for 10.24kWh to 40.96kWh configurations. It meets diverse energy needs with over 8000 cycles, temperature adaptability from โ€“20ยฐC to 50ยฐC, and multiple communication options (RS485 CAN WiFi). Supported by a 10-year warranty.

The system can be expanded with up to 15 systems in stacks, offering flexibility and future-proofing for growing energy needs.

*Minimum Qty ofย  2 | Choose 2 – 8 batteries to make your stack.ย  1 Master control needed per stack.

Note: Battery Module with Heat Film (per battery) and Master Controls are listed in Add ons**

$1,758.00

Description

About The Renon Xtreme LV Battery:

The Xtreme LV combines a compact design with robust performance, suitable for 10.24kWh to 40.96kWh configurations. It meets diverse energy needs with over 8000 cycles, temperature adaptability from โ€“20ยฐC to 50ยฐC, and multiple communication options (RS485 CAN WiFi). Supported by a 10-year warranty.

Features:

  • Scalability: The system can be expanded with up to 15 systems in stacks, offering flexibility and future-proofing for growing energy needs.
  • High Efficiency: Designed for peak shaving and self-consumption, it helps reduce energy bills by optimizing the use of solar power and minimizing reliance on the grid.
  • Strong Compatibility: The system is designed to work seamlessly with various inverters and energy management systems, providing flexibility in integration with existing setups.
  • Comprehensive Warranty: Backed by a 10-year warranty, the Xtreme LV system assures long-term peace of mind and protection for the investment.
  • WiFi Connectivity and App Control: Enables remote monitoring and management of the energy storage system through a dedicated mobile application, enhancing user convenience and control .

Major Specifications:

2 Modules 3 Modules 4 Modules 5 Modules 6 Modules ย 7 Modules 8 Modules
Nominal Energy (kWh) 10.24 15.36 20.48 25.6 30.72 35.84 40.96
Output Power (kW) 9.7 14.6 15.4 15.4 15.4 15.4 15.4
Nominal Voltage (V) 51.2
Dimensions – W*D*H (in) 25*10.6*31.3 25*10.6*40.3 25*10.6*49.2 25*10.6*58.2 25*10.6*67.1 25*10.6*76 25*10.6*85
Weight (lb) ~311 ~428 ~545 ~661 ~778 ~895 ~1012
Certifications UL1973,UL9540, UL9540A, UKCA, IEC 62619, IEC62040, CEI 0-21, UN 38.3, EN-61000, EN-62311

Manuals and Downloads:
